Pressure Sensors for Data Center Cooling Equipment and Systems

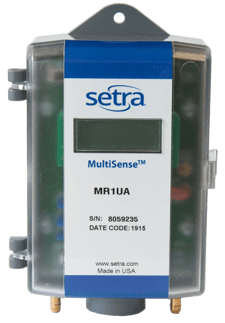

The Setra MR Series of Differential Pressure Transducers is a reliable and efficient solution for data center applications, offering accurate measurements, easy installation, and compatibility with existing infrastructure. It helps optimize data center performance, protect equipment, and maintain a controlled environment.

Setra's Model 267 is a highly configurable multirange low differential pressure transducer, offering critical accuracy across pressure ranges from 0.1" to 100" W.C. Housed in a robust NEMA 4 rated enclosure, it features an optional static pressure probe to reduce installation costs. An optional LCD display and standard ±0.5% accuracy make it ideal for high-accuracy HVAC/R applications in data centers..

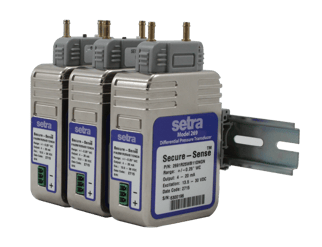

Setra's Model 269 transducer is the highest accuracy solution for monitoring differential pressure in critical environments. The 269's calibration is tamper proof by utilizing a removable process head that eliminates inadvertent adjustments while allowing in-situ calibrations without removing the process tubing. The 269 offers multiple mounting configurations, including DINrail, for quicker and easier installation.

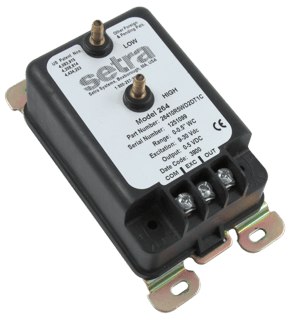

With millions of sensors installed world wide, Setra’s 264 is the “standard” for low differential pressure measurement in data centers. The 264 very low differential pressure transducer uses a dead-ended stainless steel welded capacitive sensing element that requires minimal amplification and delivers excellent accuracy and longterm stability in critical installations.

R&D and Product Embedded
Setra’s model 230 is a true wet to wet differential pressure sensor with a single SS diaphragm providing fast response time. The NEMA4 enclosure allows the sensors to be placed at the point of use on coolant tanks, fire suppression systems, and anywhere else you need to measure pressure.

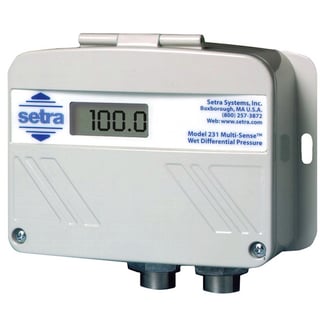

The 231 provides a calculated differential pressure with integral or remote sensors for flexible mounting options to fit any application. The calculated differential allows for high line pressure applications and Setra’s capacitive sensing technology provides high overpressure capability as well.

Setra’s latest and greatest industrial pressure sensor covers a wide range of pressures at a low cost and short lead time. The AXD has an IP67 rated enclosure and optional high overpressure protection to help with water hammer effects. Customers have found success with the AXD on refrigeration lines, liquid pumps, and multiple pneumatic applications.

Setra’s Model 256 is a robust pressure sensor with a NEMA4X housing for protection against water and dust ingress. This long lasting sensor is best used on rooftop equipment or inside mechanical rooms without climate control.

Over 50 years of engineering excellence

Over 10,000,000 installs worldwide

Made in the USA

98% on time delivery
